The grey Mercedes-Benz Unimog 4×4 Fixed Roof is a completed expedition camper manufactured in the Philippines and currently located in Japan. It combines an all-wheel drive Unimog truck platform with a permanently raised camper body.
This grey Mercedes-Benz Unimog 4×4 Fixed Roof provides permanent access to a full height living space, with floorplans available for left hand drive and right-hand drive configurations. Fixed roof alcove layouts are also available for customers seeking a different interior arrangement.
The fixed roof design offers a permanently accessible living space with a robust structure, making it an excellent choice for long-distance and remote expedition travel. Every Mercedes Arocs 4×4 Fixed Roof expedition truck is custom built to suit your style of travel, with layouts, storage solutions, electrical systems, water capacity and onboard equipment tailored to your expedition requirements.)
The Mercedes-Benz Unimog range includes several chassis models with different engine outputs, weight limits and drive systems. The selected platform can therefore be matched with the intended body layout and equipment requirements.
We build our fixed roof camper bodies using German designed composite construction, including 60 mm composite walls and an engineered torsion free subframe.
The subframe allows the Unimog chassis to move across uneven terrain while helping protect the more rigid camper body from chassis twist.
The TGM platform has a strong track record in some of the toughest conditions in Australia, including mining exploration, fire fighting, council work crews and remote area RV applications. That same engineering carries through wherever the truck is built and delivered.
A few things that set it apart for expedition use:
The Unimog chassis uses portal axles with coil springs. This arrangement supports ground clearance and controlled wheel movement over uneven surfaces.
The U 430 and U 530 use constant all wheel drive. The U 4023 and U 5023 use an engaging all wheel drive system.
Pneumatic disc brakes are listed across all four Unimog models covered by the linked product guide.
Differential locks on all axles are standard across the four models, providing additional traction support in difficult conditions.
The Unimog range includes four chassis options with different engine outputs, weight capacities and all wheel drive systems. Our team will help you choose the platform suited to your floorplan, onboard equipment and intended travel.
| Model | Engine | Output | Torque | Wheelbase | Drive |
|---|---|---|---|---|---|
| U 430 | OM 936 LA | 220 kW / 299 hp | 1,200 Nm | 3,600 mm | Constant AWD |
| U 530 | OM 936 LA | 220 kW / 299 hp | 1,200 Nm | 3,900 mm | Constant AWD |
| U 4023 | OM 934 LA | 170 kW / 231 hp | 900 Nm | 3,850 mm | Engaging AWD |
| U 5023 | OM 934 LA | 170 kW / 231 hp | 900 Nm | 3,850 mm | Engaging AWD |
All four models use an UG 100/8 transmission with an integrated transfer case, portal axles with coil springs and pneumatic disc brakes.
Review the Unimog chassis range, model dimensions, engine specifications and optional equipment.
View the main fixed roof floorplan displayed with the grey Mercedes-Benz Unimog expedition camper.
Explore an optional alcove floorplan configured for left hand drive markets.
View an available right hand drive version of the Unimog fixed roof alcove layout.
View another available left hand drive configuration for a fixed roof Unimog camper.

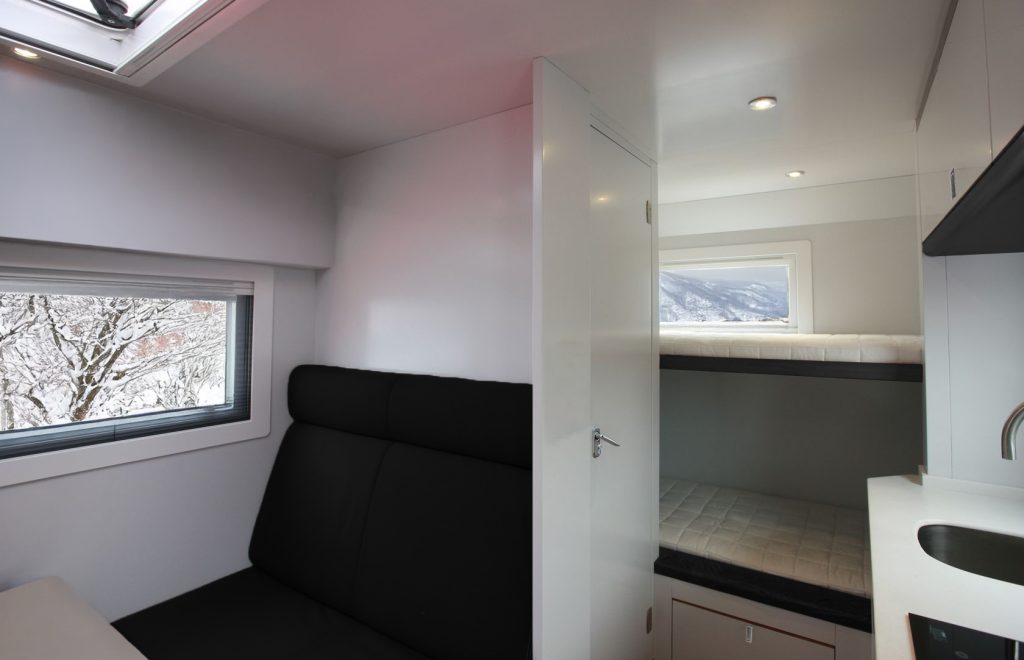

View the grey Unimog exterior, camper body and interior configuration.
Prefer the white finish? View the White Mercedes-Benz Unimog 4×4 Fixed Roof Expedition Camper.
Contact our team to discuss this grey Unimog configuration, current availability or a custom fixed roof expedition camper based on one of the available Unimog platforms. We can discuss chassis selection, drive configuration, floorplans, build location, international shipping and current pricing based on your requirements. We typically respond within one business day. Call us on 1300 745 414 or complete the enquiry form below.
Worldwide Shipping | Finance Available | Left Hand and Right Hand Drive Options
The linked product guide covers the U 430, U 530, U 4023 and U 5023. The appropriate model depends on the planned body, equipment and final engineered vehicle limits.
No. A fixed roof maintains its full internal height while travelling and when parked, allowing the living area to be accessed immediately.
The floorplans displayed on this page include left hand and right hand drive configurations. Contact the team to discuss which options are available for your destination.
Yes. All Terrain Expedition Trucks can help coordinate delivery worldwide through its shipping partners or work with a freight company selected by the customer.
Yes. You can arrange your own finance or discuss available finance options with the All Terrain team. Builds begin with a 5 per cent deposit.
